How to install and adjust the Seed Cleaner Seed Cleaning Machine
I Please read the instructions of this Seed Cleaner carefully
Seed Cleaner: II Security warning
Thank you for choosing our products, for normal operating condition, avoiding some uncertainty, to eliminate possible hazards, special warning note the following:
1 Electrical safety issues
1) Grounding line in the tag 〨 Department, during the machine operation should be well grounded.
2) Before starting, the electrician must inspect all parts of electrical conditions to ensure safety.
3) Please stop work when the humidity is high.
2 The requirements of the operators
Operators should be adults, to go through professional training and pass the examination; operators should carefully read this manual before operation.
3 Attention matters for operation
（1）Before starting
1) For the first use of the machine operator, before starting, please carefully read this manual and pay attention to safety signs everywhere (fans, rotary discharging valve and the safety precautions logo).
2) Check whether the fastening part is loose, and if so, and then tighten.
3) The workplace should be flat, and adjusting the screw to make the machine racks to the horizontal position. Adjust the height so that the tire is far from pressure, and to adjust both sides same.

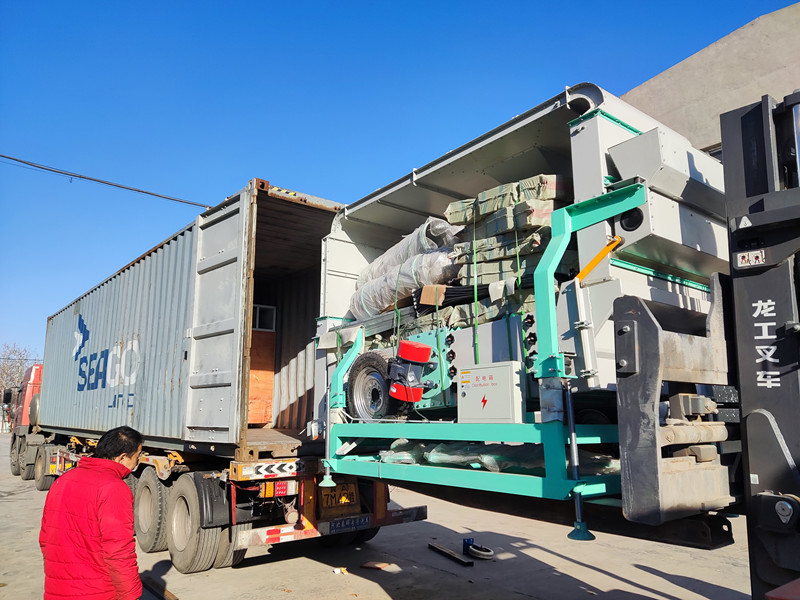

Note: There is fixed plate for transportation in the screen box, must remove, and properly keep them for later use.
（2）Working time.
1) Do not take down the protective cover belt when running.
2) Do not take down the shell of vibration motor when running.
3) When fan working, the fan exit is prohibited to stand on.
4) Pay attention to timely clean-up the winding material on the net of fan exit, so as not to affect the air flow, and open the protective net is strictly prohibited.
5) When Machine breakdown, stop machine immediately, trouble shooting in working condition is prohibited.
6) When p blackout during operation, promptly cut off the power to prevent the machine suddenly start causing the accident.
（3）After stopping machine
1) Cut off power supply to prevent accidents
2) If not using this machine long time, to clean machine and the machine should be placed in a dry environment.
Maintenance of Seed Cleaner
|
NO. |
Fault phenomena |
Possible causes |
Eliminate |
|
|
01 |
Impurity from Fan |
Cyclone duster jam seriously |
Cleaning |
|
|
Fan flow is too large |
Adjust handle of wind door |
|||
|
02 |
Air flow decreases |
Mesh of Fan exit jam |
Clean mesh |
|
|
03 |
Good seed from Discharging rotary valve |
Fan flow is too large |
Adjust handle of wind door |
|
|
The angle of air screen board is not proper |
Adjust air screen board |
|||
|
04 |
Light impurity in good seed |
Fan flow is too small |
Adjust handle of wind door |
|
|
fan exit mesh is jammed by Light impurity |
Stop machine and clean |
|||
|
The connection of fan reverse |
Interchange two lines |
|||
|
The angle of air screen board is not proper |
Adjust air screen board |
|||
|
05 |
Material jammed in screen box, the capacity is low |
Grain angle is too small |
Large the grain angle |
They are adjusted before shipment, in general, no need to adjust |
| The vibrating angle is inappropriate
|
Adjust vibrating angle |
|||
|
Amplitude of the vibration motor is too small
|
Large amplitude
|
|||
|
Frame is not on horizontal position |
Adjust screws and assure frame horizontal |
|||
| Feeding material is too large, the material accumulated in the screen box, resulting in over-attenuation of the amplitude
|
Reduce feeding capacity
|
|||
|
06 |
Different size seed are mixed in grain exit |

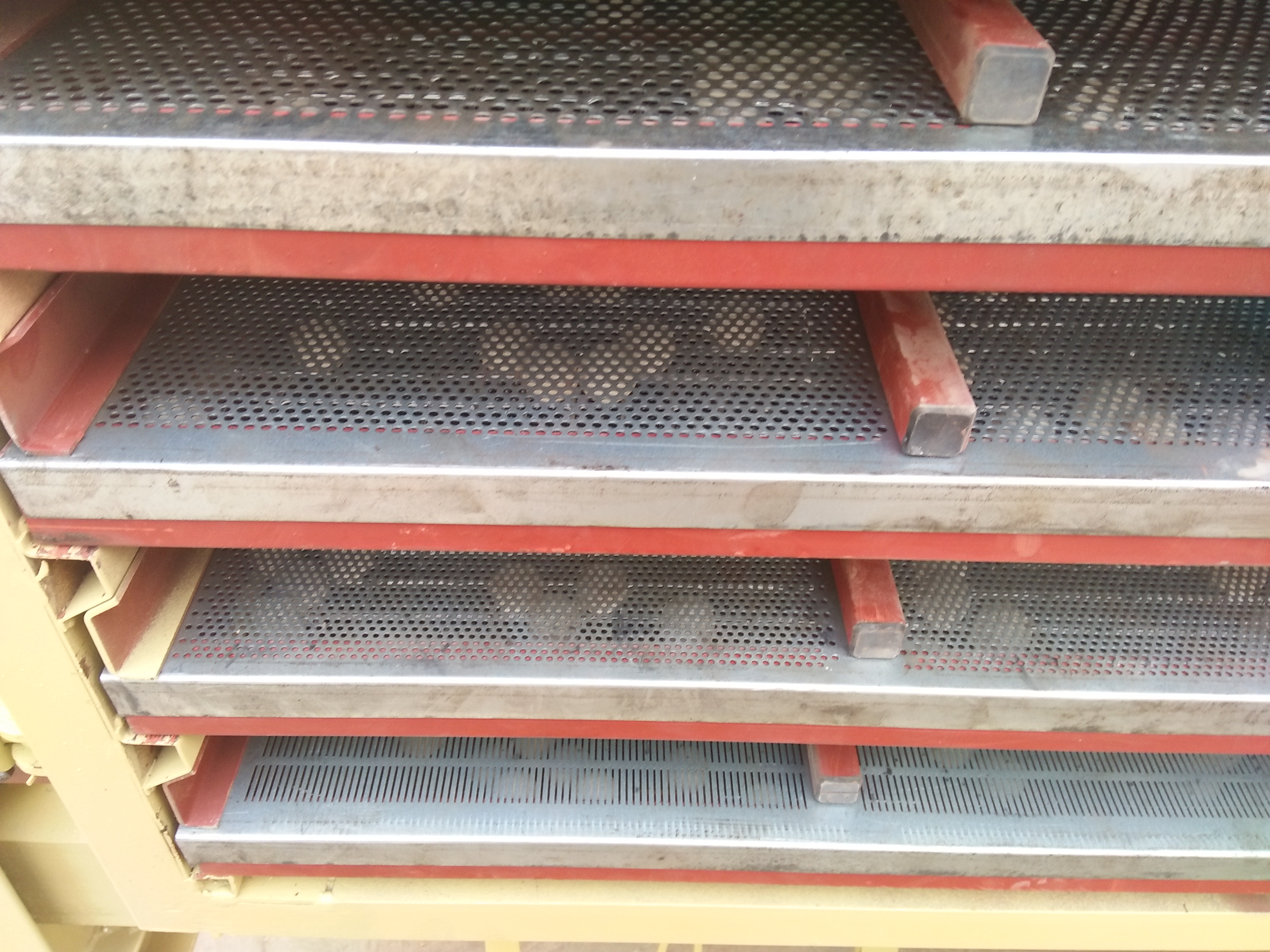

One or several sieve damage |
Change or repair sieve |
|
|
Sieve jam |
||||
|
Specification of sieve is not suitable |
Change sieve |
|||
| The blankets of grain exit box damaged or folded
|
Change blankets
|
|||
|
hold-down strip positive |
Inspection, adjust hold-down strip |
|||
|
07 |
Motor are reversed |
Reverse the total power
|
interchange any two lugs on External power supply
|
|
|
08 |
Scattering grain uneven |
The position of grain entering is not right |
Adjust the grain entering postion |
|
|
09 |
The grain impeded |
In grain exit, the grain of iron impurities jam |
Clean impurity |
|
|
10 |
Screening effect is not good |
Vibrating angle is not proper |
Adjust the vibrating angle | |
|
Amplitude is not proper |
Generally is 4.0-4.5 | |||
|
11 |
Fan sudden abnormal sound |
The adhesion of fan impeller fall off |
Clean fan impeller wholly |
|
